Spare parts Letrika P/N: 11.132.368 AZF4862 24V 4,0kW / MAHLE P/N: MS 654

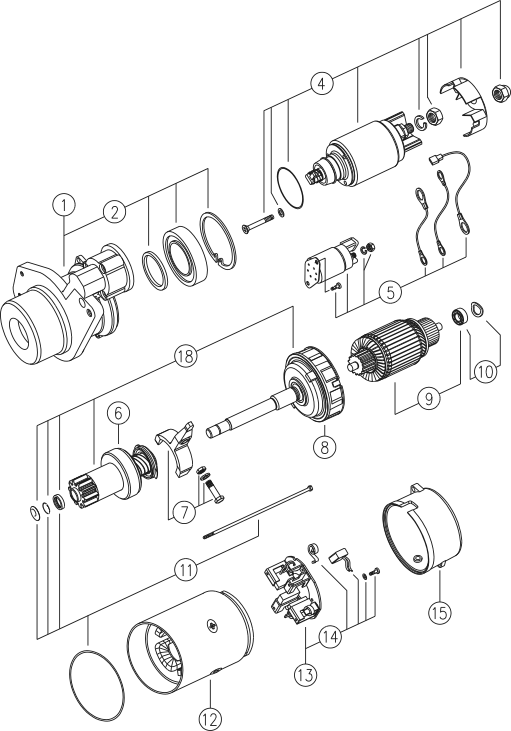

Pos.Letrika P/NMAHLE P/NDescription
116.285.809Drive end bracket
216.907.383MSX 481Bearing
416.916.018Switch
616.912.713MSX 1166Pinion with clutch
716.908.335MSX 192Lever
816.915.382MSX 1058Reduction gear
916.908.993MSX 1247Armature
1016.908.340MSX 305Bearing
1116.907.092MSX 263Fixing set
1216.917.358Stator
1316.908.994MSX 1262Brush holder
1416.908.995MSX 1249Set of brushes
1516.285.810Rear-end bracket
1816.917.380Gear with clutch
16.285.809 Drive end bracket16.907.383 MSX 481 Bearing16.916.018 Switch16.912.713 MSX 1166 Pinion with clutch16.908.335 MSX 192 Lever16.915.382 MSX 1058 Reduction gear16.908.993 MSX 1247 Armature16.908.340 MSX 305 Bearing16.907.092 MSX 263 Fixing set16.917.358 Stator16.908.994 MSX 1262 Brush holder16.908.995 MSX 1249 Set of brushes16.285.810 Rear-end bracket16.917.380 Gear with clutch
