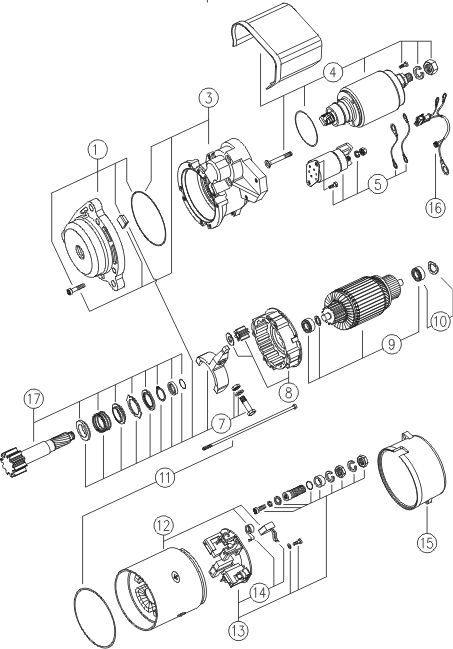

Spare parts Letrika P/N: 11.131.876 AZG4683 24V 6,5kW / MAHLE P/N: MS 452
Pos.Letrika P/NMAHLE P/NDescription
116.915.079MSX 988Drive end bracket
316.915.080MSX 989Central cover
416.915.260MSX 1046Switch
516.915.257MSX 1036Supplementary switch
716.915.207MSX 560Lever
816.907.502MSX 1308Reduction gear
916.915.269MSX 1064Armature
1016.908.340MSX 305Bearing
1116.907.488MSX 508Fixing set
1216.915.261MSX 1047Stator
1316.915.262MSX 1048Brush holder
1416.915.263MSX 1049Set of brushes
1516.285.671MSX 1012Rear-end bracket
1716.915.860MSX 1095Pinion
16.915.079 MSX 988 Drive end bracket16.915.080 MSX 989 Central cover16.915.260 MSX 1046 Switch16.915.257 MSX 1036 Supplementary switch16.915.207 MSX 560 Lever16.907.502 MSX 1308 Reduction gear16.915.269 MSX 1064 Armature16.908.340 MSX 305 Bearing16.907.488 MSX 508 Fixing set16.915.261 MSX 1047 Stator16.915.262 MSX 1048 Brush holder16.915.263 MSX 1049 Set of brushes16.285.671 MSX 1012 Rear-end bracket16.915.860 MSX 1095 Pinion
