04 May 2025

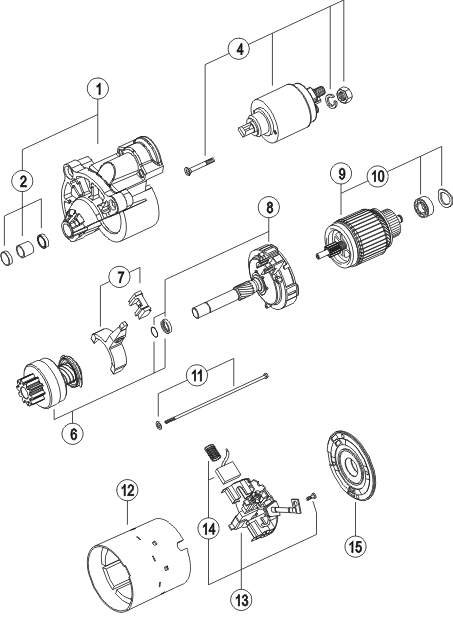

Spare parts Letrika P/N: 11.131.623 AZD2109 12V 1,1kW / MAHLE P/N: MS 410
Pos.Letrika P/NMAHLE P/NDescription
116.285.105MSX 956Drive end bracket
216.906.374MX 1Bearing
416.907.823MSX 897Switch
616.907.867MSX 929Pinion with clutch
716.907.825MSX 1356Lever
816.907.854MSX 959Reduction gear
916.907.827MSX 1357Armature
1016.907.828MSX 899Bearing
1116.907.868MSX 930Fixing set
1216.282.481MSX 123Stator
1316.907.830MSX 900Brush holder
1416.907.831MSX 1359Set of brushes
1515.133.950MSX 124Rear-end bracket
16.285.105 MSX 956 Drive end bracket16.906.374 MX 1 Bearing16.907.823 MSX 897 Switch16.907.867 MSX 929 Pinion with clutch16.907.825 MSX 1356 Lever16.907.854 MSX 959 Reduction gear16.907.827 MSX 1357 Armature16.907.828 MSX 899 Bearing16.907.868 MSX 930 Fixing set16.282.481 MSX 123 Stator16.907.830 MSX 900 Brush holder16.907.831 MSX 1359 Set of brushes15.133.950 MSX 124 Rear-end bracket
