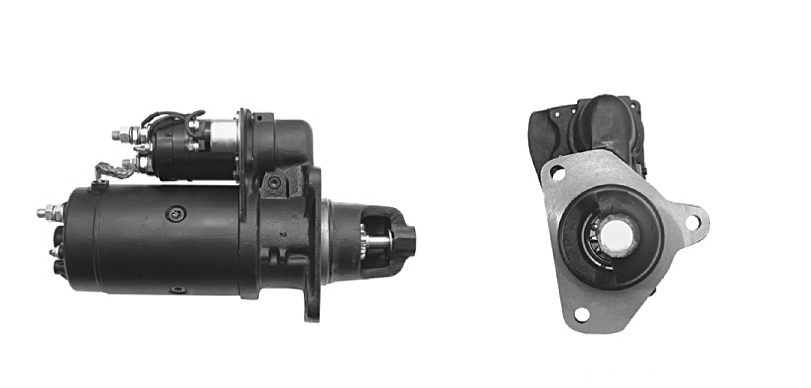

ProductStarter
Letrika P/NIS9142
Voltage24 V
Power6.2 kW
OEM P/N11.139.183
MAHLE P/NMS 473
DescriptionAZJ3489
No. of pinion teeth11
Module3 mm
Distance over two teeth14.58 mm
Outside diameter of pinion42 mm
NotesMass terminal 31
Off set drive end bracket
Soft start relay
