ProductStarter
Letrika P/NIS1403
Voltage24 V
Power4.0 kW
OEM P/N11.132.403
MAHLE P/NMS 723
DescriptionAZF4384
No. of pinion teeth10
Module3 mm
Distance over two teeth14.73 mm
Outside diameter of pinion38.7 mm
NotesOff set drive end bracket
With reduction gear

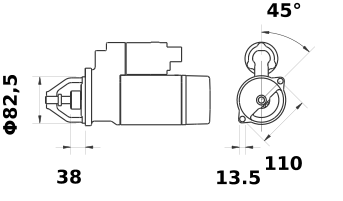

Click to enlarge
