ProductStarter
Letrika P/NIS1232
Voltage24 V
Power4.0 kW
OEM P/N11.132.348
MAHLE P/NMS 687
DescriptionAZF4365
No. of pinion teeth10
Module3 mm
Distance over two teeth14.66 mm
Outside diameter of pinion38.7 mm
NotesOff set drive end bracket
With reduction gear

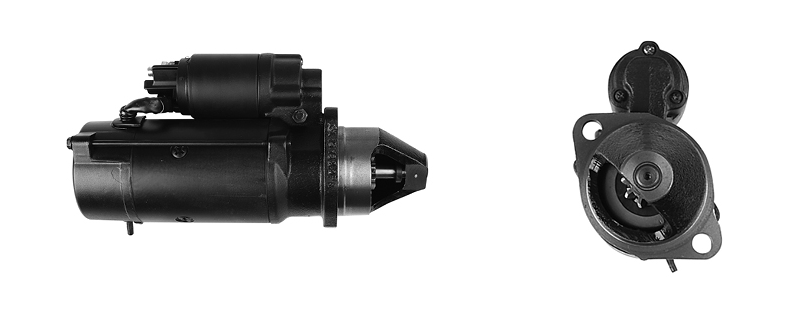

Click to enlarge
