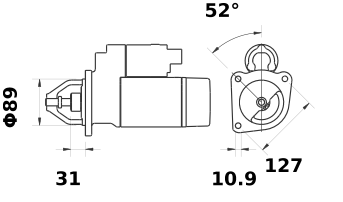

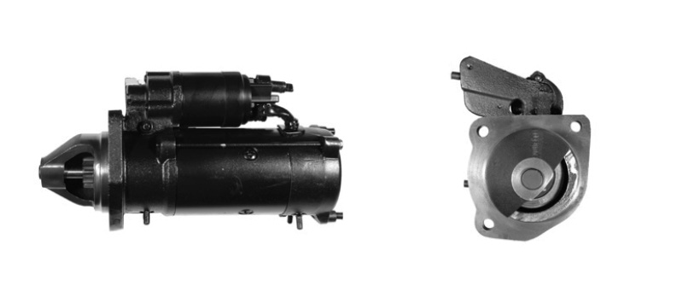

ProductStarter
Letrika P/NIS1238
Voltage24 V
Power4.0 kW
OEM P/N11.131.865
MAHLE P/NMS 70
DescriptionAZF4232
No. of pinion teeth9
Module3 mm
Distance over two teeth14.36 mm
Outside diameter of pinion34.8 mm
NotesDust-proof
Soft start relay
Terminal 85
With reduction gear
