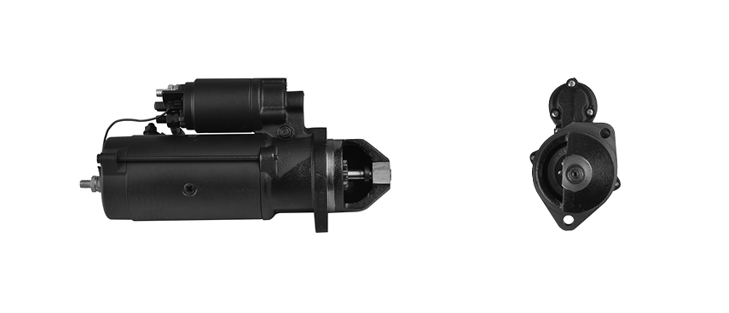

ProductStarter
Letrika P/NIS1282
Voltage24 V
Power4.0 kW
OEM P/N11.131.841
MAHLE P/NMS 36
DescriptionAZF4222
No. of pinion teeth9
Module3 mm
Distance over two teeth14.36 mm
Outside diameter of pinion34.8 mm
NotesBasic protection IP67
Insulated ground
Water-proof
With reduction gear
