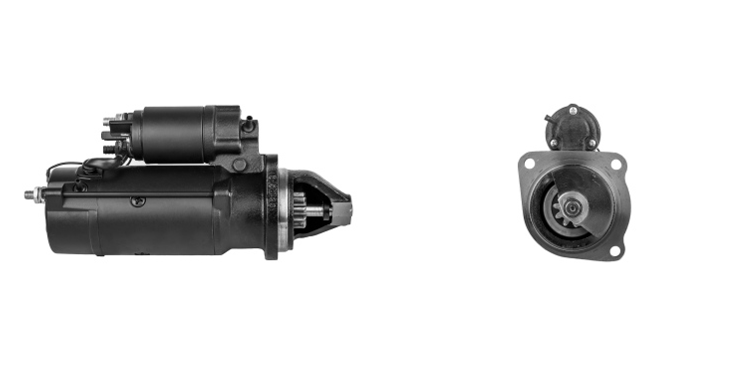

ProductStarter
Letrika P/NIS1130
Voltage24 V
Power4.0 kW
OEM P/N11.131.399
MAHLE P/NMS 99
DescriptionAZF4104
No. of pinion teeth10
Module3.175 mm
Distance over two teeth15.42 mm
Outside diameter of pinion39.6 mm
NotesInsulated ground
With reduction gear
