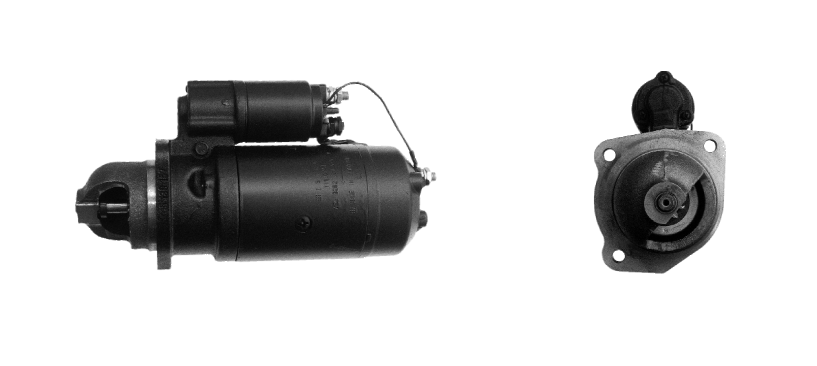

ProductStarter
Letrika P/NIS0741
Voltage24 V
Power4.0 kW
OEM P/N11.130.741
MAHLE P/NMS 362
DescriptionAZJ3262
No. of pinion teeth9
Module3 mm
Distance over two teeth14.36 mm
Outside diameter of pinion34.8 mm
NotesInsulated ground
We recommend using the Reduction Gear version IS1246

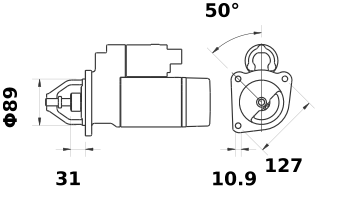

Click to enlarge
